2025 VNCI JLR DoIP Original drive solution for Jaguar Land Rover’s new diagnostic testing tool

VNCI JLR DoIP diagnostic scanner for Jaguar/LandRover, it is compatible with the original software driver, and supports SDD, pathfinder offline software and TOPix online software, supports USB  connection, WIFI direct connection, and WLAN connection. It can completely replace the original JLR DoIP VCI equipment. Supports all models for Jaguar/LandRover from 2005 up to newest, and VNCI JLR DoIP can perform basic diagnostic functions, fault guidance and search, module programming, immobilizer matching and other functions

Support protocol:  Support SAE J2534, PDU, DoIP, CAN FD

VNCI JLR Function:

• Compatible with original software drivers, no need for third-party software, plug and play
• Supports diagnosis, programming and immobilizer matching functions for Jaguar/LandRover models from 2005 to present
• Supports ECU flashing, CCF installation and modification, routine diagnostic code reading and clearing, flash hiding and other functions
• read code, clear code, freeze frame, data stream, action test, special function, matching learning, detection report, modification coding, upgrade programming, etc.
• Support SDD, pathfinder offline software and TOPix online software

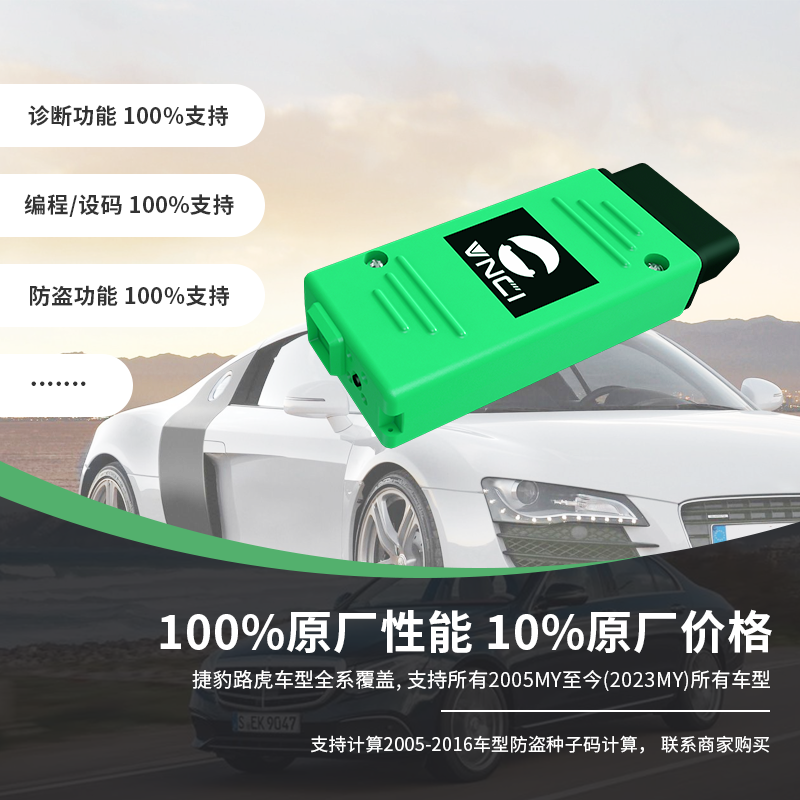

• 100% support all module diagnostics for all JLR models.
• 100% support coding and programming
• 100% support immobilizer function
• Support all 2005MY up to 2024MY+ models.
• Support calculate seek code of 2005MY to 2016MY models(paid service)

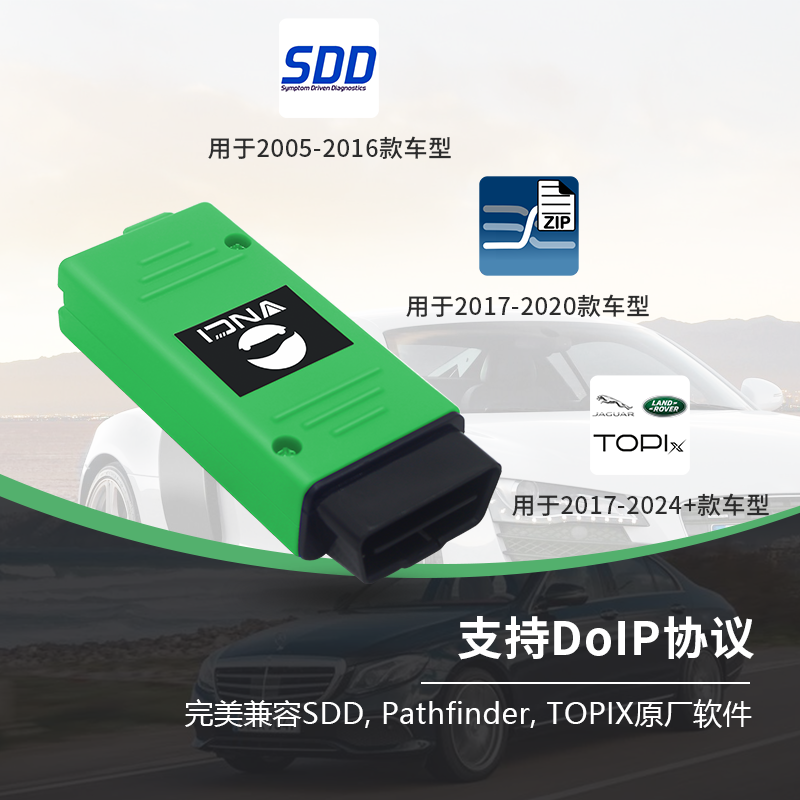

Software description:

• SDD software

  Available on 2005MY to 2016MY models for Jaguar/LandRover

• Pathfinder

  Available on 2017MY to 2022MY models for Jaguar/LandRover

• TOPIx

  Available on 2017MY to 2024MY+ models for Jaguar/LandRover

Three connection modes are supported:

• USB connection
• WIFI(Access Point) connection
• WLAN(station) connection

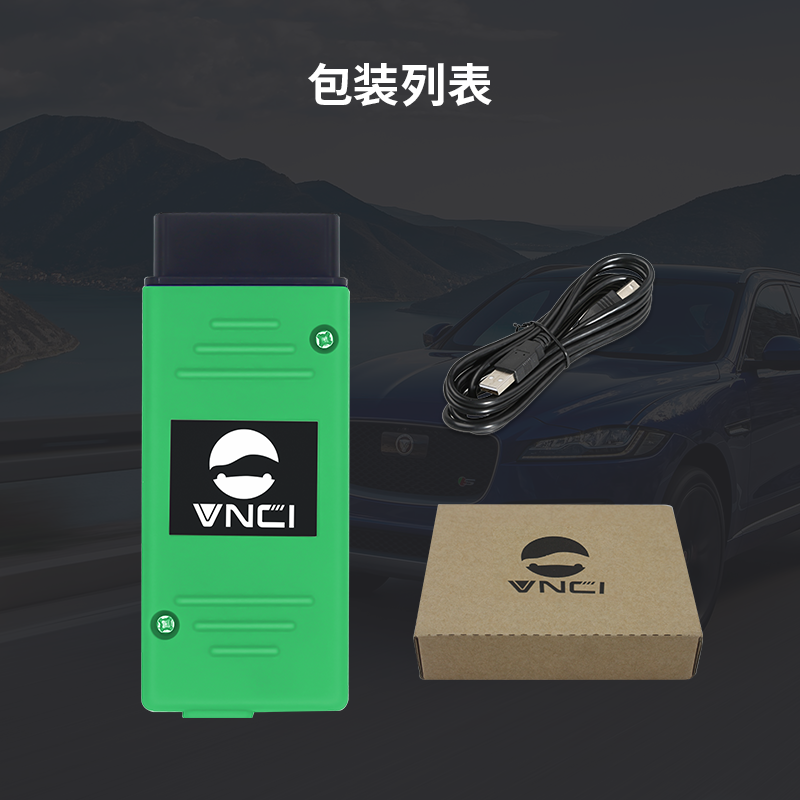

Package Includes:

• 1pc x USB cable
• 1pc x VNCI main unit
