V2018.3 MultiDiag Access J2534 passes through the OBD2 device
4 reasons to get MultiDiag J2534:
1. Latest version :V2018.3
2. Languages: Bulgarian, Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Hebrew, Hungarian, Italian, Polish, Portuguese, Romanian, Russian, Serbian, Slovenian, Spanish, Swedish, Turkish.
3. This version Multidiag J2534 solves the problem that was not found by VCI!
4. No need to activate, support some models until 2018
Attention:
VCI number :093479

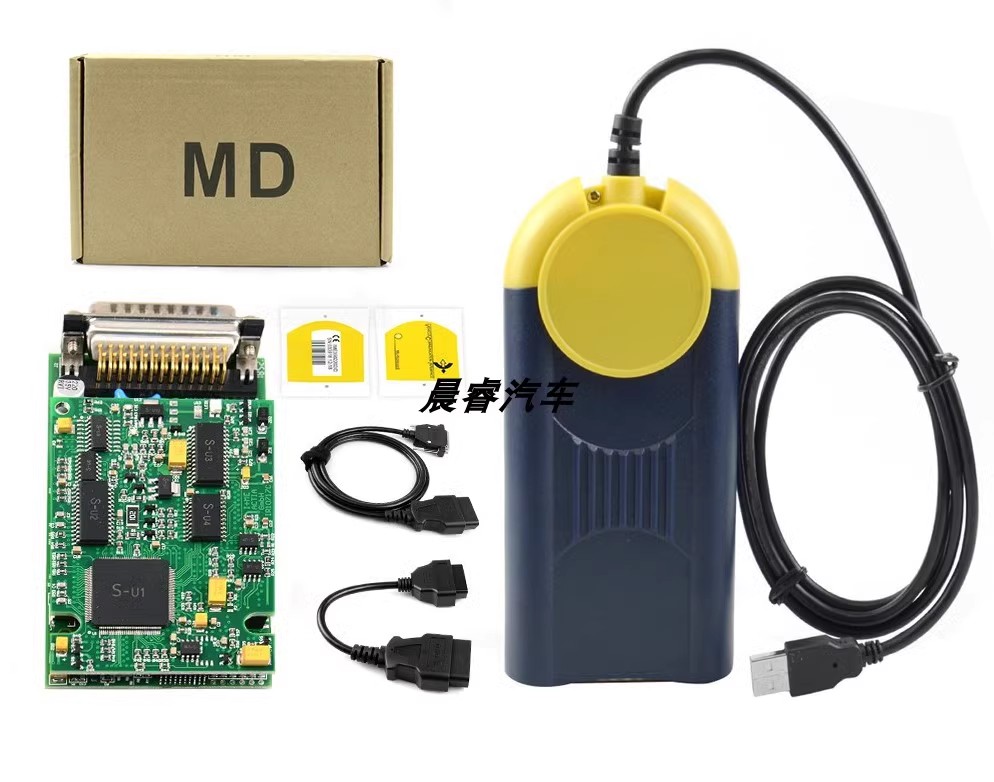

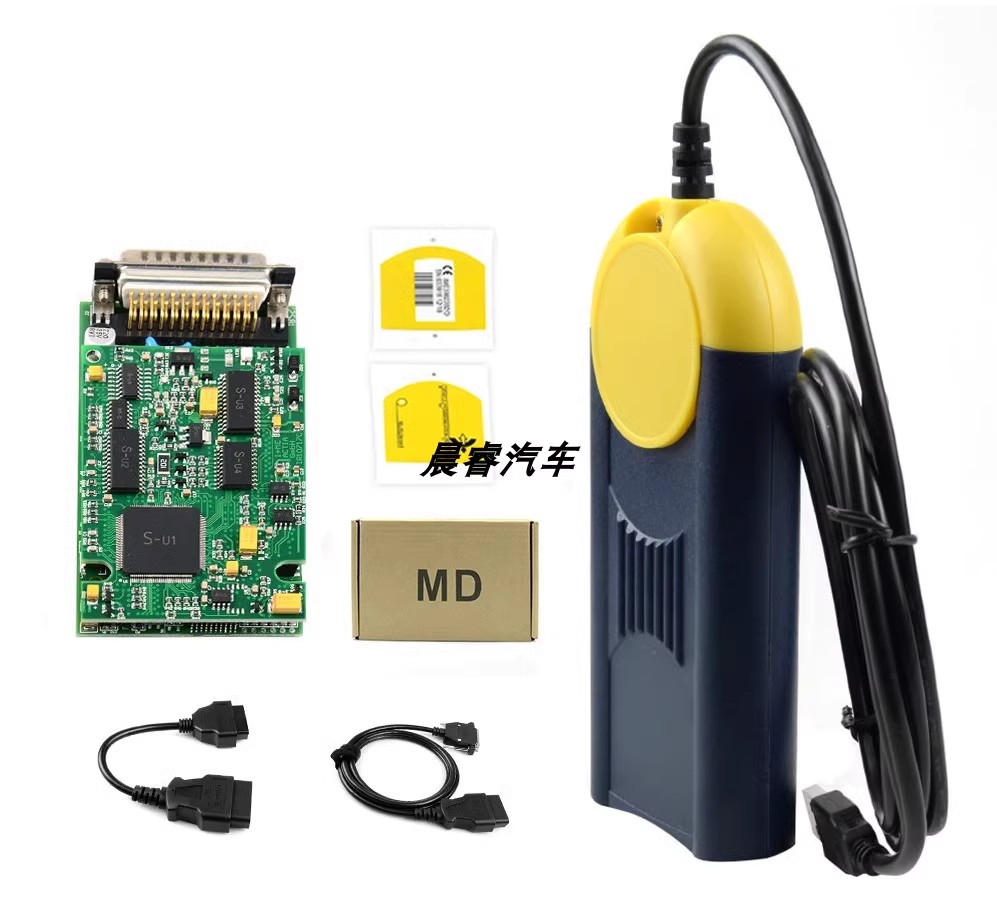

MultiDiag Access J2534
The Access J2534 Pass-Thru Device is a VCI(Vehicle Communication Interface), and with the help of Multi-Diag Office software, vehicle diagnostics, maintenance and repair operations can be done in just a few clicks without the need to be an electronics expert. It covers more than 45 brands, many new cars, and deep diagnostic functions.
V2018.3 MultiDiag Access J2534 Characters
Meets SAE J2534 & J2534-1 standards
rs232 or USB interface to PC
K-wire ISO 9141 (100 mA)
KWP 2000 iso 14230-4
SAE J1850 PWM
SAE J1850 VPW
Can 2.0b iso be 11898
ISO 15765-4
SCI SAE J2610
Programmable power supply
Onboard memory
Interface function:

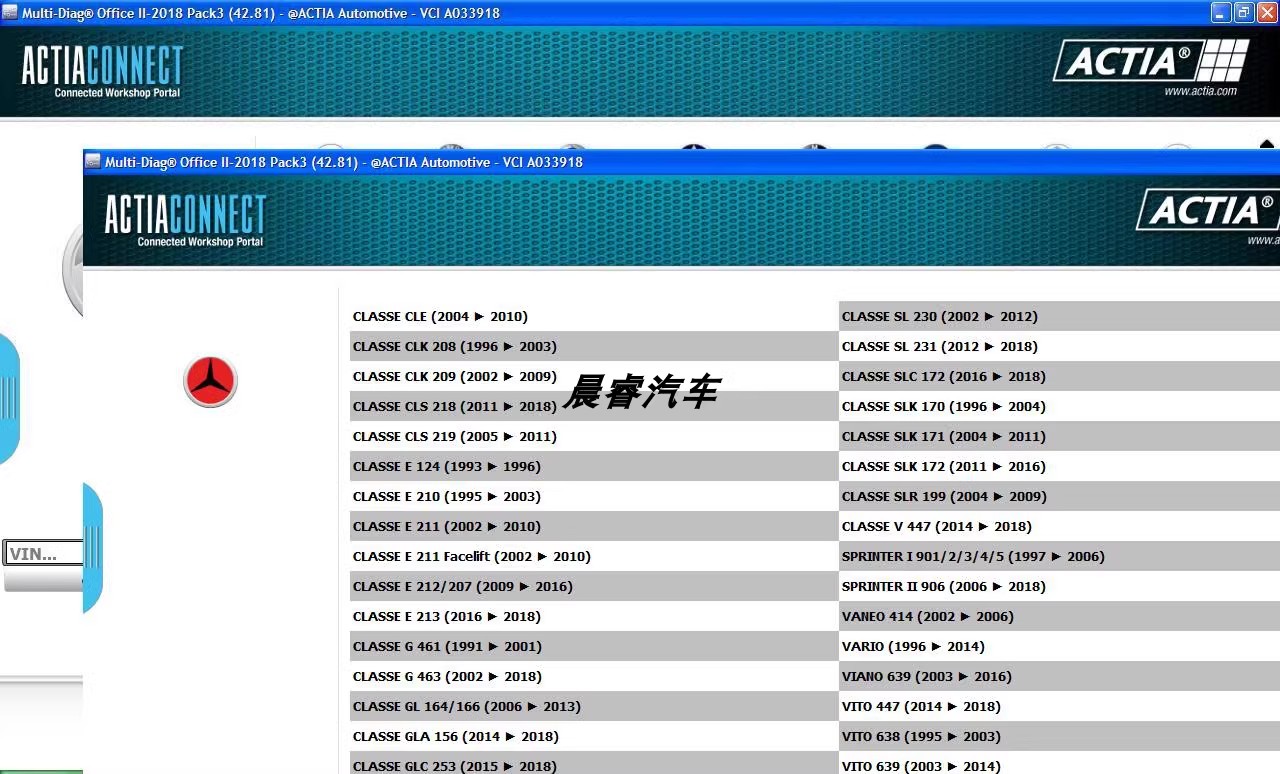

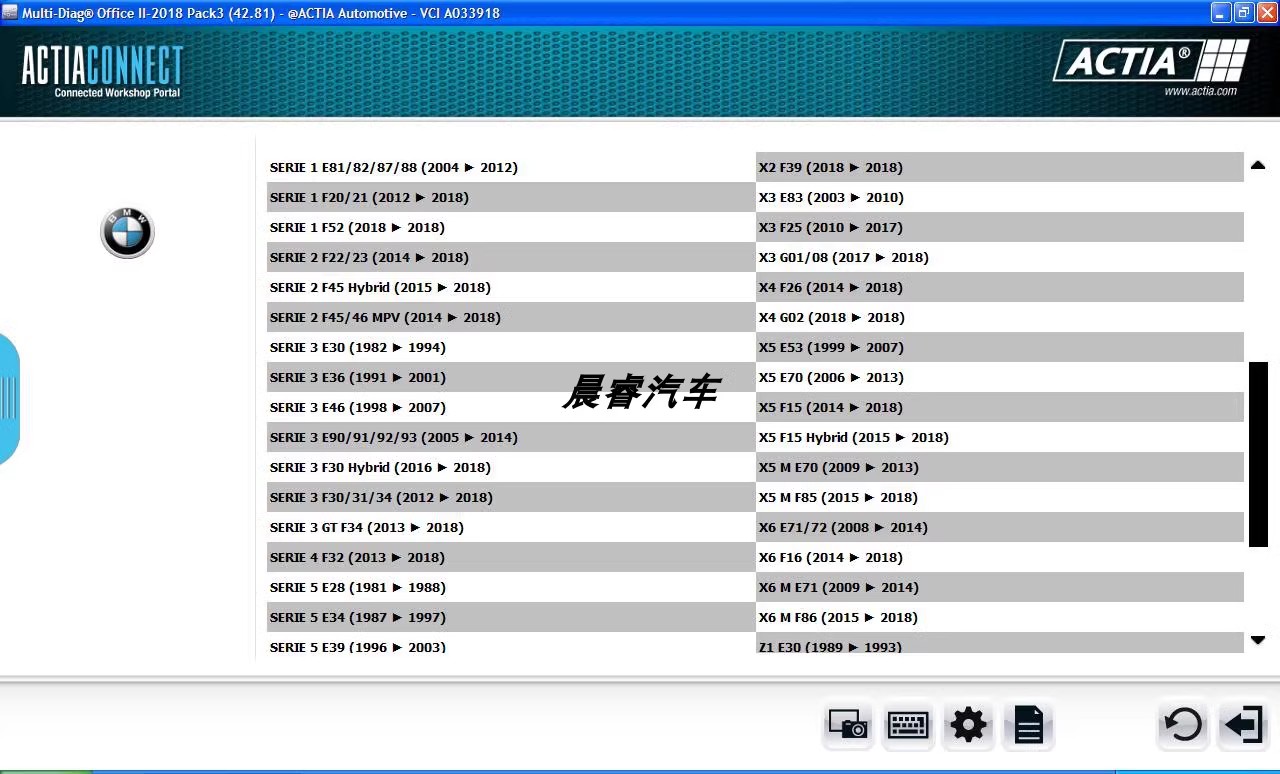

After selecting the car manufacturer, the different menus provided can be diagnosed according to the model:
1. Maintenance
Diagnostic code from all computers
Replacement maintenance interval
Sewage treatment
Read/delete a faulty calculator
Particulate filter maintenance
2. Air Conditioning
Cooling electronics diagnostics
Readout set cooling loop
Test the servo actuator
3. Pollution control
Diagnosis of particulate filters
Electronic control of pollutant emissions
Lambda probe control
4. Contact with the ground
Electronic configuration of tire dimensions
Electronic tire Configuration (Winter/Summer)
Set valve tire pressure
Impact driven diagnosis and management
Sensor Angle calibrated driving (steering Angle initialization)
Step 5: Body
Airbag implementation (locking/unlocking)
Reconfigure a new calculator airbag
Diagnostic calculator airbag
Rain sensor windshield (read and erase faults)
Test panel and lamp activator
Set xenon headlights
Rear radar
6. Post-Equipment
Set the radio
Configure the loader CD
Set alarm
Coupler configuration
Configure the bike loading system
Step 7 Brake
Computer diagnosis of ABS and ESP
Diagnose and unlock the electric brake
Flush brake system
8. Motor
Diagnosis of any computer injection engine (diesel, gasoline, flex fuel, etc.)
Program injector
Electronic configuration of EGR valves

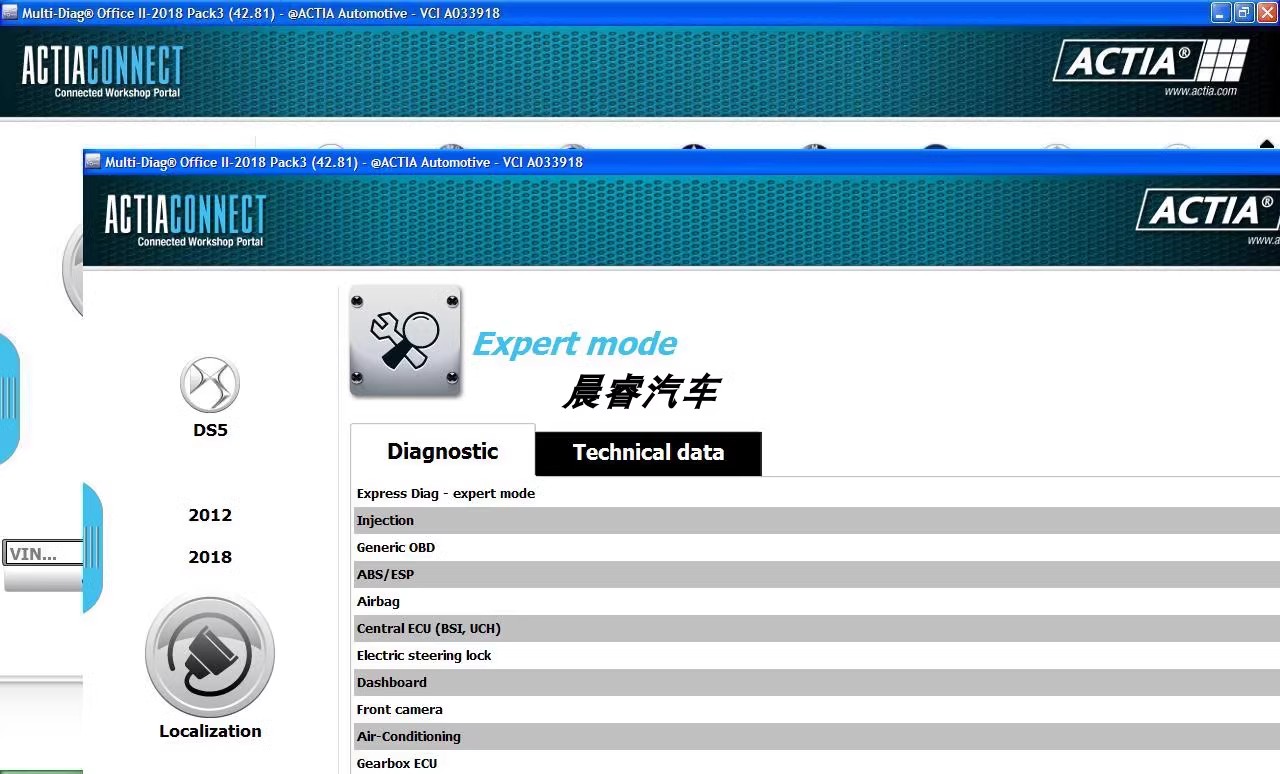

9. Expert mode
Advanced computer diagnosis
Comfort function configuration
Change the dashboard language
Physical measurement (option with probe – not available)
Get direct access to all diagnostic functions
