Introduction to G-IDSS:
Region: China, Australia, Asia, Europe, Spain
Languages: Chinese, English, Spanish, German, French, Japanese, Thai, Turkish, Ukrainian, Greek, Hungarian, Italian, Indonesian, Vietnamese
System: Windows 7 / Windows 10 32-bit / 64-bit
Version: 2020
G-IDSS 2020 Isuzu Truck Bus Highway engine diagnostic tool G-IDSS 2018, with hardware and light truck DPF diesel SUV D-max

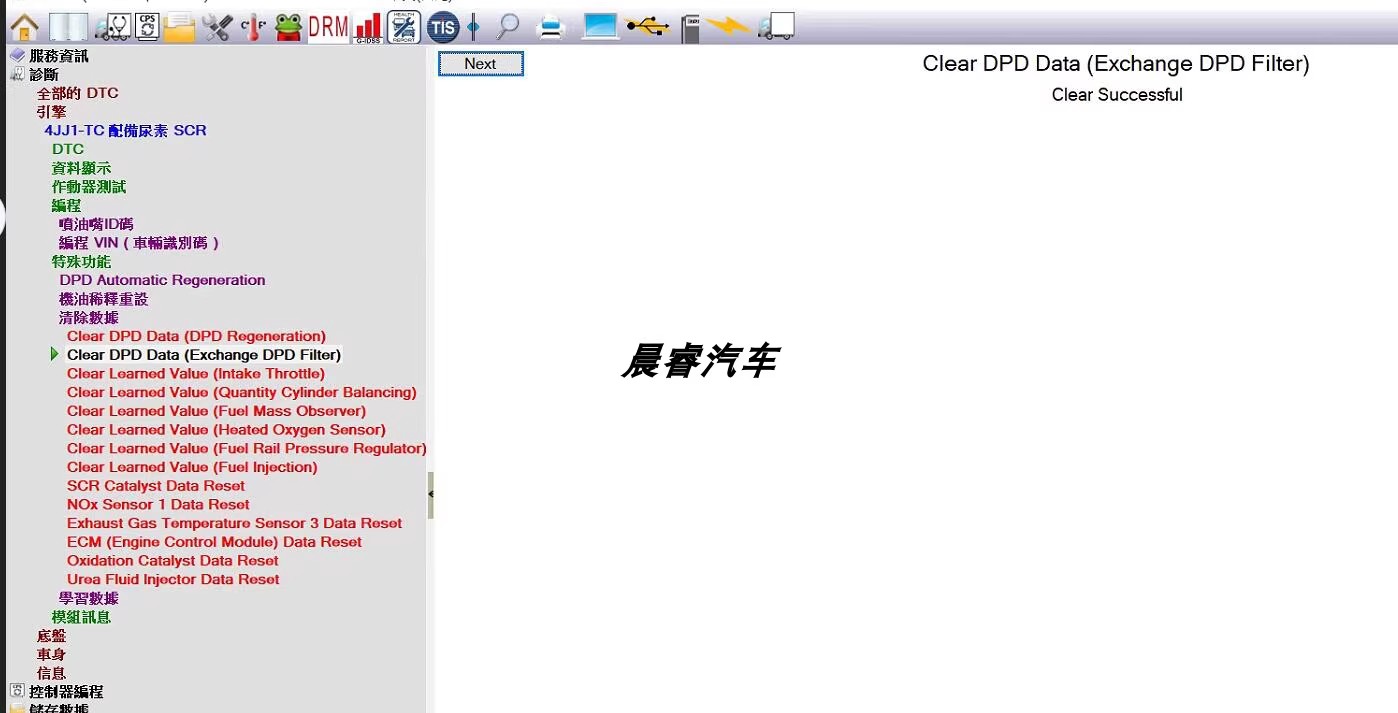

G-IDSS USB-Link’s diagnostic tool is good, but there is no ECU/ECM plug, so you can’t write data to the ECM/ECU. It can perfectly diagnose other functions, including Euro IV, Euro 5 DPF redefinition function, injector code, write VIN, diesel pump and other functions such as regulation function

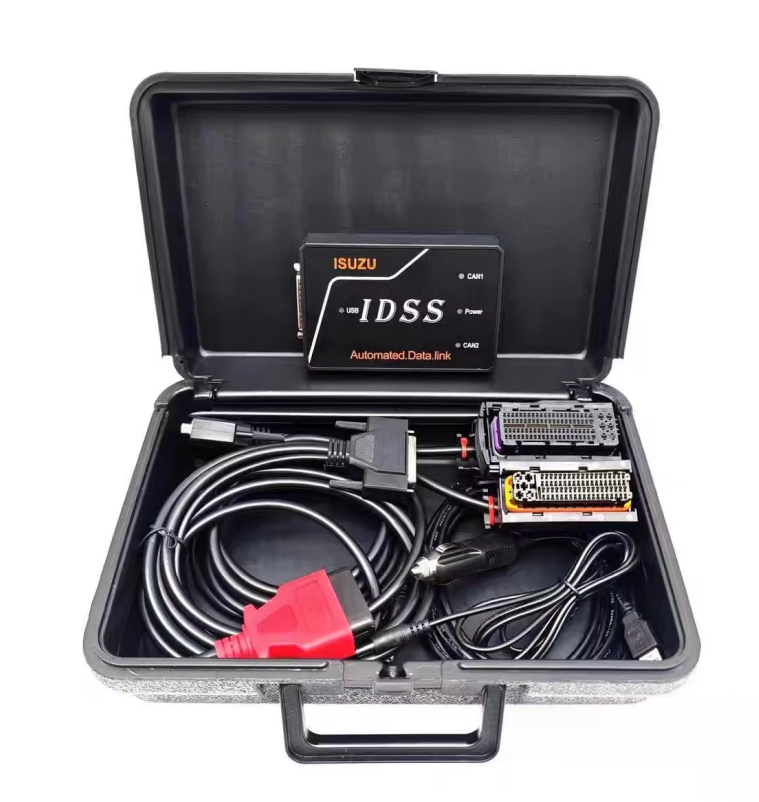

G-idss is the software for use, and USB-LINK is the hardware. It can only test IsuzU engine Denso ECU/ECM sensors, adblue and DPF.
Controller programming allows you to update and reprogram various vehicle controllers based on part numbers and/or new available calibration files. You can program the following types of controllers by selecting controller programming from the TOC:

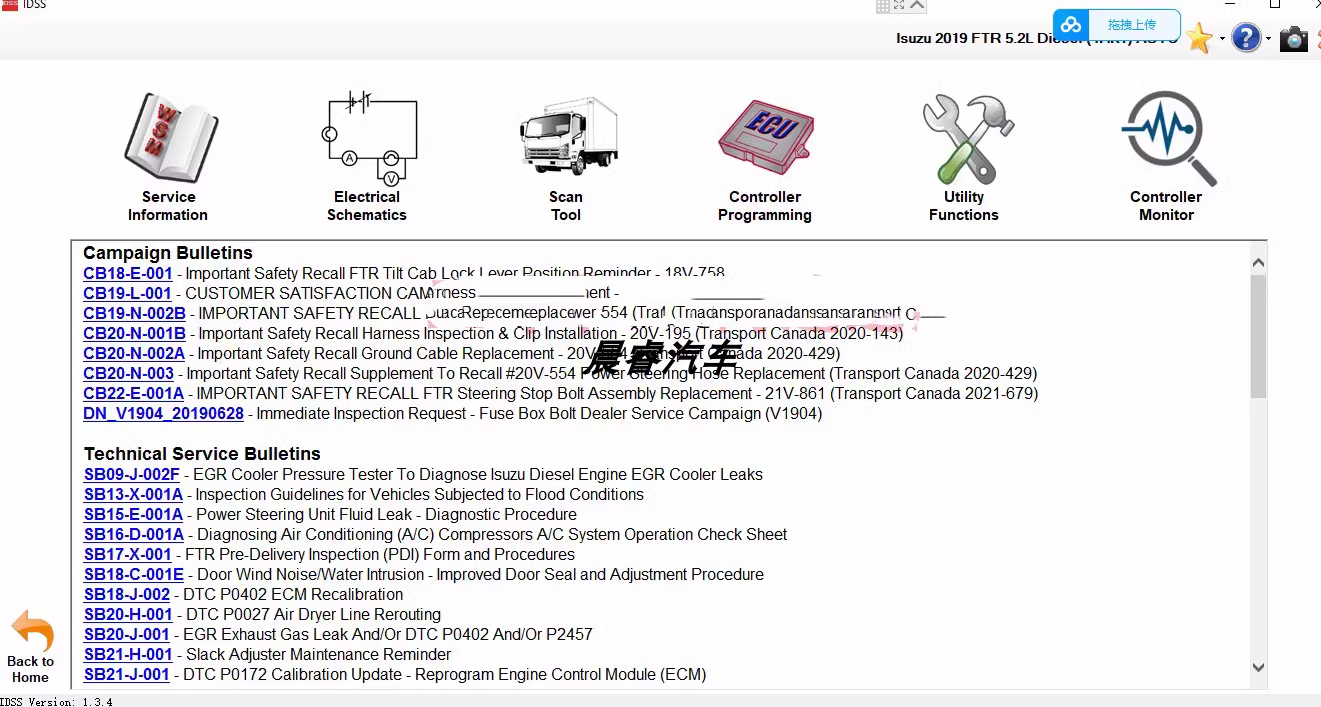

G-IDSS features include:
• Service information;
• Diagnostics (engine, transmission, chassis, body);
• Controller programming
Supported model:
ISUZU_G-MC: 1996-1999 NPR Diesel and F series include NPR/W 3500, NPR HD/W 4500, only for 6.0L V-8 gasoline engine, 7.8L
Heavy duty Isuzu 6HK1 engine 6WG1 6WF1.
Isuzu: NPR, NPR HD, NQR, NRR, FTR, FVR, FXR, NPR, NPR HD, NQR, NRR with 6HK1 LG4 engine, NPR, NPR HD, NQR, NRR with 5.2L (4HK1) or 3.0L (4JJ1) diesel engine. 6.0 liter V-8 gasoline engine.

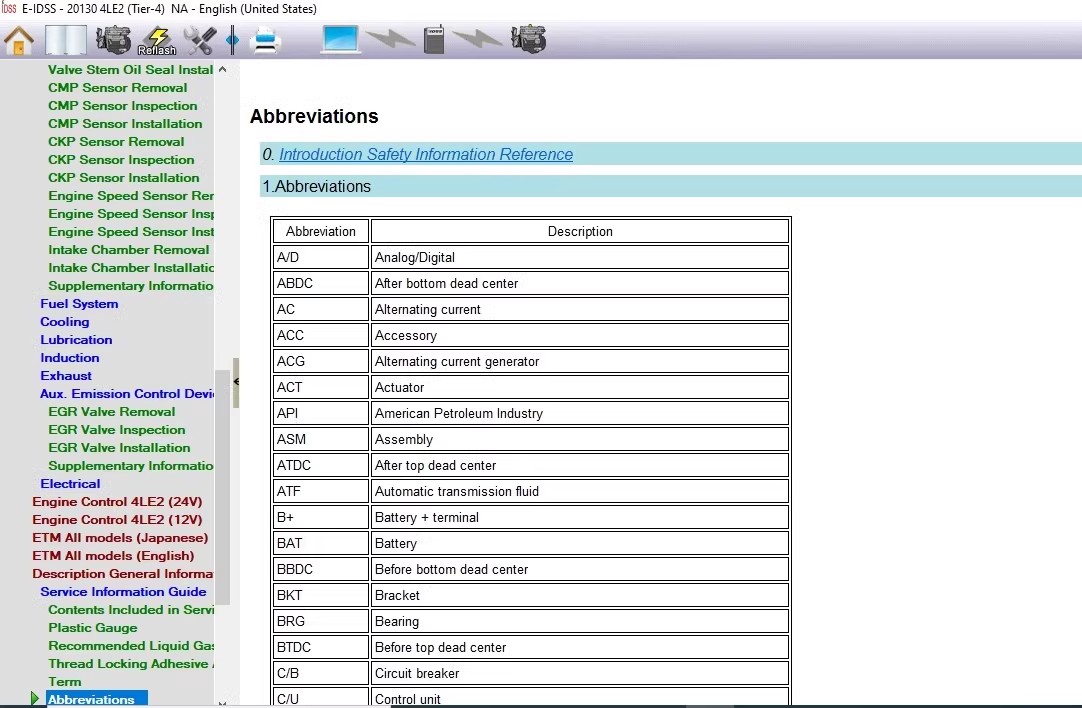

Introduction of E-IDSS:
Languages: Chinese, English, Japanese
E-IDSS is a special software for off-highway equipment, used in engineering excavators, industrial generators, etc. Cannot be used in truck and bus engines. If you want to diagnose trucks, buses, and pickup trucks, use G-IDSS.
Similar in functionality to the G-IDSS, it can test Isuzu engine sensors, adblue and DPF diagnostics. But you can’t test the Bosch and Delphi systems Isuzu. Only tested DENso Isuzu, DenSO Kato, Kobelco, Sumitomo Denso Hitachi ECU/ECM.
System: Windows 7/10 32-bit / 64-bit
Version: 2020
Supported model:
DENYO
2005-2015 (4JJ1 Tier-4, 4HK1 Tier-4, 6WG1 Tier-4, 4LE2 Tier-4, 6WG1 INT-Tier-4, 4JJ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3, 6WG1 Tier-3)
Doosan
2005-2010 (6WG1 Tier-3, 6UZ1 INT-Tier-4, 6WG1 INT-Tier-4)
Hidromek
2005-2012 (4JJ1 INT-Tier-4, 4HK1 INT-Tier-4, 6HK1 INT-Tier, 4JJ1 Tier-3, 6UZ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)
Hitachi
2005-2015 (4JJ1 Tier-4, 4HK1 GB3, 6HK1 GB3, 6UZ1 GB3, 6WG1 GB3, 4JJ1 GB3, 4HK1 tier-4, 6HK1 tier-4, 6UZ1 tier-4, 6WG1 tier-4, 4HK1 INT-Tier-4, 6HK1 INT-Tier-4, 6UZ1 INT-Tier-4, 6WG1 INT-Tier-4, 4JJ Tier-3, 4HK1 Tier-3, 6HK1 Tier-3, 6WG1 Tier-3)
Hokuetsu
2005-2014 (4LE2 Tier-4, 4JJ1 Tier-3, 6UZ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)
HSC
2005-2010 (6HK1 INT-Tier-4, 4HK1 Tier-3, 6HK1 Tier-3, 6WG1 Tier-3)
IH I
2005-2006 (4JJ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)
ISEKI
2006-2012 (4JJ1 INT-Tier-4, 4JJ1 Tier-3)
Isuz u PT-China
200 5-2015 (6WG1 GB3, 4HK1 INT-Tier-4, 6HK1 INT-Tier-4, 4JJ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)
Isuzu America
2005-2013 (4JJ1 Tier-4, 4LE1 Tier-4, 4JJ1 Tier-3, 6UZ1 Tier-3 Tier-4,
4HK1 Tier-3, 6HK1 Tier-3, 6WG1 Tier-3)
IWAFUJI
2005-2006 (4JJ1 Tier-3, 4HK1 Tier-3)
JCB H P
2005-2010 (6HK1 INT-Tier-4, 4HK1 INT-Tier-4, 4JJ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)
KATO
2006-2013 (4LE2 Tier-4, 4JJ1 INT-Tier-4, 4HK1 INT-Tier-4, 4JJ1 Tier-3)
KCM
2005-2014 (6WG1 Tier-4, 6WG1 INT-Tier-4, 4HK1 Tier-3)
KG Flowtech no
2005 (4HK1 Tier-3)
Kobelko
2013 (4LE2 Tier-4)
Madill
2005 (6HK1 Tier-3)
Maeda Seisakusho
2013 (4LE2 Tier-4)
Morooka
2010 (4HK1 INT-Tier-4)
NH Kobelco
2005 (6HK1 Tier-3)
Nihon Josetsu
2005-2013 (4LE2 Tier-4, 4JJ1 INT-Tier-4, 4HK1 INT-Tier-4, 4JJ1 Tier-3, 4HK1 Tier-3)
Nihon Sharyou
2005-2006 (4JJ1 Tier-3, 6UZ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)
Sakai
2005-2012 (4JJ1 INT-Tier-4, 4JJ1 tier-3, 4HK1 Tier-3)
Sanward
2005-2006 (4JJ1 Tier-3, 4HK1 Tier-3)
Sany
2005-2014 (6WG1 GB3, 4HK1 INT-Tier-4, 6HK1 INT-Tier-4, 4JJ1 Tier-3, 4HK1 Tier-3)
Shinko Engineering
2005 (4HK1 Tier-3, 6HK1 Tier-3)
Sumitomo
2005-2015 (4JJ1 Tier-4, 4HK1 GB3, 6HK1 GB3, 4HK1 Tier-4, 4JJ1 GB3, 6HK1 Tier-4, 4LE2 Tier-4, 4JJ1 INT-Tier-4, 4HK1 INT-Tier-4, 6HK1 INT-Tier-4, 6UZ1 INT-Tier-4, 4JJ1 Tier-3, 6UZ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3, 6WG1 Tier-3)
Ta keuchi
2 006-2013 (4JJ1 Tier-4, 4JJ1 INT-Tier-4, 4JJ1 Tier-3)
Unicarrie rs
2005-201 0 (4HK1 INT-Tier-4, 6HK1 INT-Tier-4, 4HK1 Tier-3, 6HK1 Tier-3)
Uota ni
200 5 (4HK1 Tier 3)
Yamabiko
2005 (4HK1 Tier-3, 6HK1 Tier-3)
